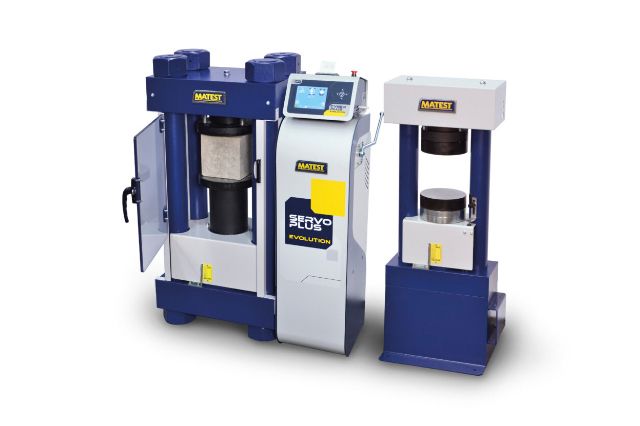

Model Number:
1300/1500/2000/3000/4000/5000kN, 2000kN Blocks, 3000kN Blocks

Application Standard:
Designed to meet International Specifications: EN, ASTM, AASHTO, BS, NF, DIN

HYDRAULIC SYSTEM:

• Variable flow pump with manual control or auto control
• A fast approach ram action device avoids dead times during stroke of ram

LOAD MEASUREMENT AND CONTROL SYSTEM:

• Bourdon type gauge
• Cyber plus evolution, 8 analogue channels for acquisition, display and processing of data
• Digitech, 2 analogue channels for acquisition, display and processing of data
• Autotec, 2 channels automatic servo-controlled systems to provide fully automatic test throughout all phases with the support of DigiTech technology
• Servo Plus Evolution,8 channels automatic servo-controlled system, to provide fully automatic test throughout all phases with the support of cyber plus evolution electronic technology

Make : Matest, Italy.

Specification

• Compression platens Ø 216 mm (1300,1500,2000kN)
• Compression platens Ø 287 mm (2000kN for cubes 200mm, 3000kN)
• Compression platens 510 x320x55 mm (for blocks 2000kN,3000kN)
• Compression platens 310 x310mm (5000kN)
• Max. Vertical Daylight: 336 mm (1300,1500,2000,3000kN, 2000kN blocks,3000kN blocks)
• Max Vertical Daylight: 530 mm (5000kN)
• Horizontal daylight between columns: 270mm (1300,1500,2000,3000kN)
• Horizontal daylight between columns: 324mm (2000kN blocks)
• Horizontal daylight between columns: 340mm (3000kN blocks, 5000kN)
• Maximum ram travel 55 mm approx. (1300,1500,2000,3000kN,2000kN blocks,3000kN blocks)
• Maximum ram travel: 60mm approx.(5000kN)

Features and Benefits

• Extremely strong and oversized load frame ensuring high rigidity and stability
• Precision Lapped upper ball seat with compression platen
• Compression Platens are ground finish and surface hardened over 55 HRC
• Both Hand operated and motorized version with one or two gauges
• Hydraulic device to stop the Piston’s stroke at its maximum excursion to avoid pumping the piston out of the cylinder
• High stiffness four column heavy weight frame
