Specification

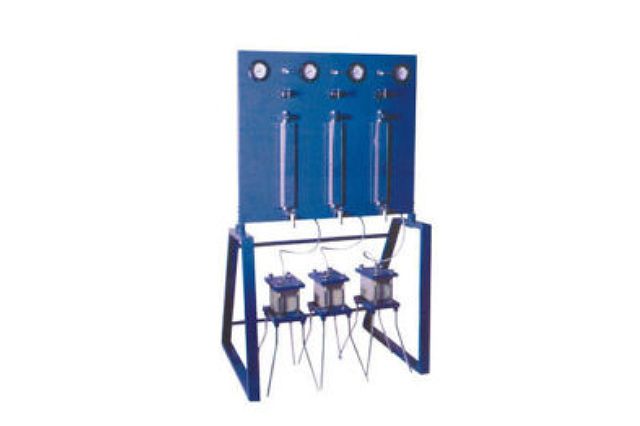

The concrete permeability apparatus comprises a brass/gunmetal cell of Square/Round cross-section mounted on a stand and a pressure chamber is connected to the cell through copper tubing and T-connector mounted on the stand with sleeve packed valve and rubber hose pipe with end connections.
The cell assembly consists of one base plate, one metal funnel, and one top plate.
The pressure chamber is fitted with a pressure regulator which helps in regulating the pressure from 0-15kg/cm sq.
Gauge is for indicating the pressure in the cell.
A foot pump and a pressure tube are supplied to develop pressure in the chamber.
The apparatus is supplied with a measuring cylinder 500cc to measure percolated quantity to water.
Pressure can also be applied by a pressure airline or by a compressor that can be supplied at an extra cost & supplied with three individual cells withstand.
Three pressure gauges for indicating pressure in each cell are supplied apart from the main pressure gauge which indicates the pressure chamber.
