Standard : EN 12504: part 4 | BS 1881:203 | ASTM C597 | NF P18-418

Make : Matest, Italy

Specification

• Touch screen LCD display 800×480 pixel.
• Windows operating system like a standard PC.
• Flash memory 128Mb, expandable with SD card to limited memory.
• Time measuring from 0 to 9999,9 μS resolution.
• Possibility to combine the ultrasonic measurement with rebound index (SonReb method).

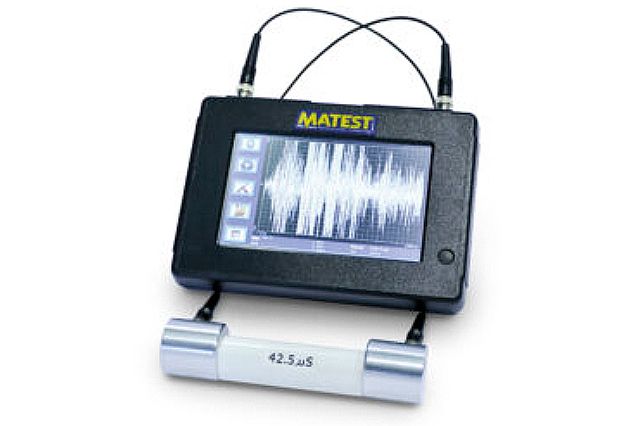

The standard appliance includes:

• Instrument in basic configuration (ARM Cortex-AS 400MHz, 128 MB Flash Memory, 128 MB Ram) in a practical and elegant palmer container.
• Two 55 kHz probes with connecting cables.
• Calibrating cylinder and contact paste Strong anti-shock case holding the instrument and the accessories.
• Battery pack Li-Ion 11.1V 3000mAh
• External feeder 230V/24V and battery charger

Features and Benefits

• 7″ WVGA colour touch screen, 128 MB, SD card, USB, working system Windows CE.
• It Measures/ calculates impulse speed, time travel, Young’s Modulus of soil, Young’s Modulus of Concrete, Crack depth calculation.
• Zero calibration and defined time value calibration
• Possibility to use the instrument with two exponential probes, or with one standard probe and one exponential probe.
• Visualization of the shape of the transmitting wave while it goes through the material checked, by transforming the instrument into a real oscilloscope.
