STANDARDS: EN 12504 part. 4 | ASTM C597 | BS 1881:203 | NF P18-418

Specification

• Measuring range: 0 – 3000 μs – accuracy ± 0.1 μs
• Selection of the ultrasonic pulse amplitude adjustable from 250 to 1000 V
• Measurement of the required time by the ultrasonic pulse to go through the tested material.
• Single or continuous acquisition mode with automatic or manual saving.
• Zero calibration with depuration of the time for the pulse to go through the probes.
• Calibration of a defined time value.
• Capacity of data acquisition, processing and filing of the test data up to 30.000 samples.
• Interface mini USB for PC connection.
• Two outlets for connection to the oscilloscope.

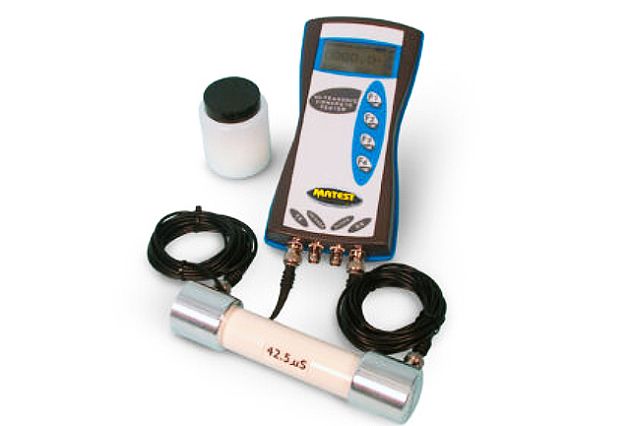

The standard appliance includes:

• The instrument in basic configuration in a practical palmer container.
• Two 55kHz probes with connection cables.
• Battery rechargeable pack NiMh 4.8V > 2000m/A with low battery condition alarm.
• External feeder 230V and battery charger 12V 500m/A.

• Case dimensions: 400x340x110mm
• Weight: 2 kg approx.

Features and Benefits

• Non-destructive test to determine cracks, voids, faults presence in concrete structures.
• LCD displays 128×60 pixels.
• Battery operated rechargeable.
• Portable with anti-shock case.
