Aggregate Crushing Value Apparatus
Standard : IS 2386 (PART-IV) & BS 812.
For measuring of Resistance of Aggregate to crushing.

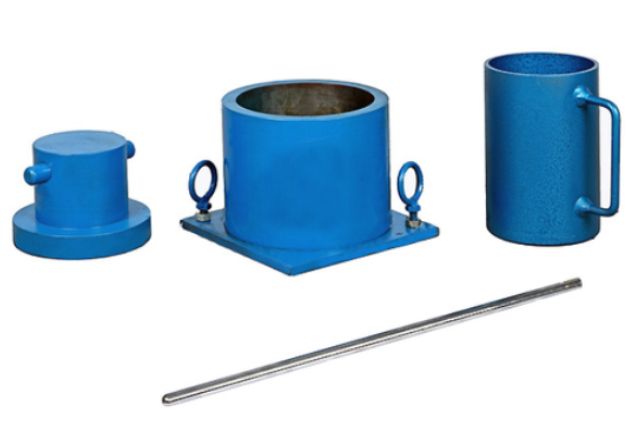

Specification
- Consists of M.S. Cylindrical Container 150mm +/-0.5mm dia x 130mm to 140 mm high with base plate 200 to 230mm/sqr x 6mm thick.
- A Plunger of 148 mm +/-0.5 mm dia x 100 to 115 mm high.
- Supplied complete with Tamping Rod, 16mm dia x 600mm long, both ends rounded,
- 1 no : Metal Measure 115+/- 0.5 mm dia x 180 +/- 0.5 mm high.
Features and Benefits
On Special Request Aggregate Crushing Value Apparatus having 75mm dia or 300mm dia cylinder size can be supplied.
-
