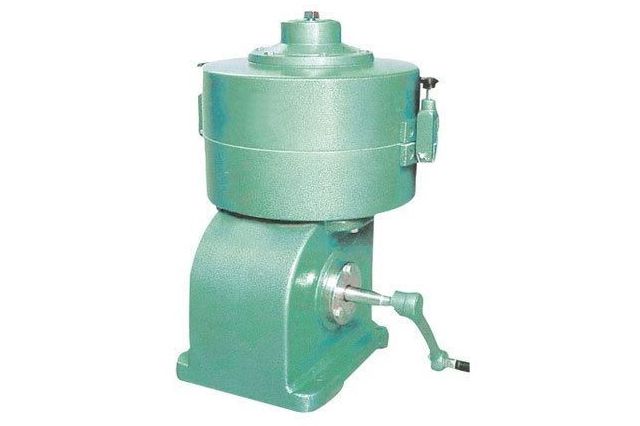

Bitumen Extractor
Standard : ASTM D2172, AASHTO T-58, T-164
We provide both Hand Operated and Electrical Bitumen Extractor.
Specification
The Instrument is used for determination and checking of Bitumen percentage in Bituminous mix, the mix is added with a solvent and dissolved bitumen is removed by centrifugal action.
Consists of a removable Aluminum rotor bowl, Capacity 1500 gms. With a cap and tightening nut.
The bowl assembly is mounted on a vertical shaft, which protrudes from a cast housing.
This shaft and thus the bowl is rotated fast manually by enclosed gears in the cast body and handle.
Solvent is introduced during the test through the holes in the cap of the housing.
A drain is provided to collect dissolved Bitumen coming out of the rotating bowl and getting collected in the housing.
**Electrical Operation, Capacity 1500g, with a Dimmer stat for speed control from 2,400 to 3,600 rpm.
Suitable for operation on 230 V, 50 Hz, Single Phase, A.C. supply.
-
