It is used to determine of the rebound deflection of flexible pavement under static load.

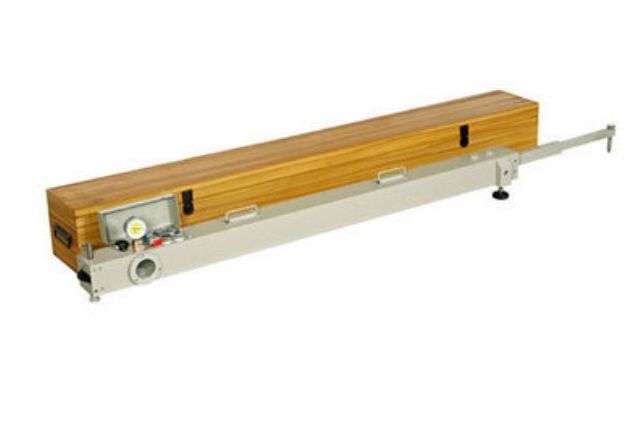

The complete instrument is light weight and is supplied in two parts for easy assembling and disassembling on site with help of hand tools and also it becomes easy to carry with the help of handle.

In use one end of the beam rests at a point under investigation while the beam is pivoted at the center. The free end carries a dial gauge to record the deflections and the other end is kept on the a stable platform. Because of beam ratio small deflection is magnified and recorded on the dial gauge.

In use one end of the beam rests at a point under investigation while the beam is pivoted at the center. The free end carries a dial gauge to record the deflections and the other end is kept on the a stable platform. Because of beam ratio small deflection is magnified and recorded on the dial gauge

Specification

• Benkelman Beam : Beam Ratio : 2 : 1
• Length of the probe arm from pivot to probe point 244cm.
• Length of measurement arm from pivot to dial 122 cm.
• Distance form pivot to front legs 25cm.
• Distance from pivot to rear legs 166cm
• Lateral spacing of front support legs 33cm.

Features and Benefits

• Dial Gauge : 0.01 x 25mm
• Spirit Level
