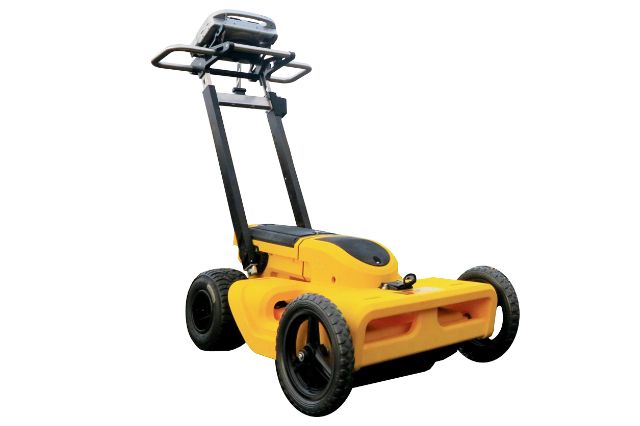

Ground Penetrating Radar (GPR) System
- There’s a lot going on underground that you need to know about before you ever start to dig. The Leica DS2000 Ground Penetrating Radar [GPR] finds all potential threats, including non-conductive pipes and fibre optics, increasing safety by lowering the risk of accidentally hitting underground assets.
- Increase safety, speed up work and lower asset management costs with the ability to prevent hazardous outages and collect more information. The Leica DS2000 GPR betters your business by making it safer, faster and more efficient.
Make : Leica, Switzerland
Specification
DUAL FREQUENCY ANTENNA
| Antenna footprint |
40x50cm |
| Hardware channels |
2 |
| Antenna central frequencies |
250MHz & 700MHz |
| Antenna orientation |
Perpendicular, broadside |
| Sampling frequency |
400 kHz |
DATA ACQUISITION
| Acquisition speed |
More than 10 km/h |
| Scan rate per channel for 512 samples per scan |
381 scans per second |
| Scan interval |
42 scans per metre |
| Positioning |
2 integrated encoders – GPS and/or TPS |
CONTROL UNIT
| Power consumption/supply |
13.3 W / Rechargeable SLAB [sealed lead acidity battery] 12 V DC, 12 Ah |
| Operating temp |
-10°C to + 40°C |
| Weight |
27Kg |
| IP Rating |
IP65 |
