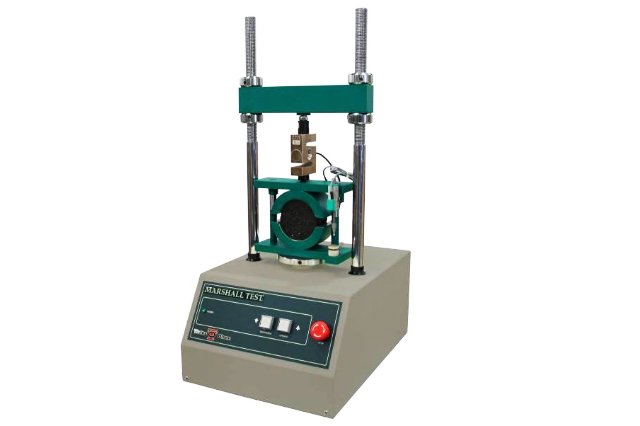

Marshall Stability Test Equipment is used by highway departments, contractors, engineers, testing laboratories and other government agencies to test the stability of bituminous samples.

It is used for measurement of resistance to plastic flow of cylindrical specimens of bituminous paving mixture loaded on the lateral surface.

The machine can provide measurement data for use with hot mixture containing asphalt or tar and aggregate up to 25.4mm maximum size. The equipment comprises a bench top loading frame with a screw-driven adjustable crosshead.

The Marshall Stability Test Machines are available in two models: digital, using a load cell to measure force and an LVDT to measure displacement; and a non-digital version that uses a proving ring to measure force and a micrometer to measure displacement.

SUPPLIED AS STANDARD

Digital indicator
Load cell 50kN
Displacement transducer 0-25 mm

• Breaking head assembly
• Data acquisition system comprising:

Specification

• Maximum vertical clearance 470 mm
• Minimum vertical clearance 250 mm
• Horizontal clearance 265 mm
• Platen diameter 133 mm
• Platen travel 25 mm
• Platen speed 50.8 mm/min
• Rated power 375 W
• Dimension (L x W x H) 550 x 400 x 870 mm
• Weight 60 kg

Features and Benefits

• Single speed, bench top load frame.
• Maximum loading capacity of 50kN.
• Geared screw jack and motor drive.
• Precise speed.
• Limit switch protection for both upward and downward movement.
